Gupshup Whatsapp X Tiledesk

This documentation is about how to use Gupshup as a Whatsapp communication channel and Tiledesk as an attendance system.

All integration is configured by creating a record in the database using the config API:

Configs (POST) /api/v1/configs

Requirements

You must have collected the following information:

  • GUPSHUP_APP_NAME = App name
  • GUPSHUP_API_KEY = Api key
  • GUPSHUP_WHATSAPP_PHONENUMBER = Whatsapp number
  • TILEDESK_PROJECT_ID = Project ID
  • TILEDESK_SHARED_SECRET = Shared secret
  • The name of the configuration
  • The public and secure URL of your Superchat server

How to get this information

Generate new config template

Use this API endpoint to generate it:

After the configuration data is generated, copy the json result and continue from now on.

Get the JSON config data

  • From the template generated in the previous topic, copy the value of the config field. Do not copy the name of the field.

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
    {
    "handson_webhook_url": "https://you.lt.superchat.com.br/api/v1/webhooks/cklv8qzo1000r0cs1q0klt1vb/tiledesk-ckm86efhr000i0aqyhrpuqj6v/handson/json",
    "channel_webhook_url": "https://you.lt.superchat.com.br/api/v1/webhooks/cklv8qzo1000r0cs1q0klt1vb/tiledesk-ckm86efhr000i0aqyhrpuqj6v/channel/json",
    "config": {
        "label": "Gupshup whatsapp with Tiledesk handson to human operator",
        "key": "tiledesk-ckm86efhr000i0aqyhrpuqj6v",
        "value": {
        "active": true,
        "channel": {
            "app": "GUPSHUP_APP_NAME",
            "uid": "GUPSHUP_WHATSAPP_PHONENUMBER",
            "user": "",
            "password": "",
            "extra": {},
            "apikey": "GUPSHUP_API_KEY",
            "module": "app.lib.channels.gupshupwhatsapp",
            "plugin": "gupshupwhatsapp",
            "channel": "whatsapp",
            "plugins": {
                "in": [
                    {
                        "id": "optin_telegram",
                        "extra": {
                            "signup_url": "https://web.telegram.org"
                        },
                        "order": 0,
                        "module": "app.lib.channels.plugins.in.optin_telegram",
                        "execute": "once",
                        "description": "Optin for Telegram channel"
                    }
                ],
                "out": [],
                "contact": {
                    "extra": {},
                    "default": {
                        "id": "ckkoibtlh000072xu98aqqm1r",
                        "extra": {},
                        "module": "app.lib.channels.plugins.contacts.default",
                        "description": "Get minimal contact info"
                    }
                }
            }
        },
        "handson": {
            "url": "https://api.tiledesk.com",
            "module": "app.lib.handson.tiledesk",
            "plugin": "tiledesk",
            "channel": "tiledesk",
            "project_id": "TILEDESK_PROJECT_ID",
            "allow_newchat": false,
            "shared_secret": "TILEDESK_SHARED_SECRET"
        },
        "speech_name": "Empresa de demonstração",
        "speech_name_genre": "a"
        },
        "status": 1
    }
}

    Example

    In the case of our example the correct result would be this:

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
    {
    "label": "Gupshup whatsapp with Tiledesk handson to human operator",
    "key": "tiledesk-ckm86efhr000i0aqyhrpuqj6v",
    "value": {
        "active": true,
        "channel": {
            "app": "GUPSHUP_APP_NAME",
            "uid": "GUPSHUP_WHATSAPP_PHONENUMBER",
            "user": "",
            "password": "",
            "extra": {},
            "apikey": "GUPSHUP_API_KEY",
            "module": "app.lib.channels.gupshupwhatsapp",
            "plugin": "gupshupwhatsapp",
            "channel": "whatsapp",
            "plugins": {
                "in": [
                    {
                        "id": "optin_telegram",
                        "extra": {
                            "signup_url": "https://web.telegram.org"
                        },
                        "order": 0,
                        "module": "app.lib.channels.plugins.in.optin_telegram",
                        "execute": "once",
                        "description": "Optin for Telegram channel"
                    }
                ],
                "out": [],
                "contact": {
                    "extra": {},
                    "default": {
                        "id": "ckkoibtlh000072xu98aqqm1r",
                        "extra": {},
                        "module": "app.lib.channels.plugins.contacts.default",
                        "description": "Get minimal contact info"
                    }
                }
            }
        },
        "handson": {
            "url": "https://api.tiledesk.com",
            "module": "app.lib.handson.tiledesk",
            "plugin": "tiledesk",
            "channel": "tiledesk",
            "project_id": "TILEDESK_PROJECT_ID",
            "allow_newchat": false,
            "shared_secret": "TILEDESK_SHARED_SECRET"
        },
        "speech_name": "Empresa de demonstração",
        "speech_name_genre": "a"
    },
    "status": 1
}

  • Change these fields with previous collected information:

    Field Replace With
    value.channel.app GUPSHUP_APP_NAME Name of the app created in the Gupshup dashboard.
    value.channel.uid GUPSHUP_WHATSAPP_PHONENUMBER The phone number associated with the app in Gupshup.
    value.channel.apikey GUPSHUP_API_KEY APIKEI provided by Gupswhup.
    value.handson.project_id TILEDESK_PROJECT_ID The project ID in Tiledesk.
    value.handson.shared_secret TILEDESK_SHARED_SECRET The shared secret generated for the project on Tiledesk.

Get the webhook URL's values

  • From the template generated in the previous topic, copy the value of the handson_webhook_url and channel_webhook_url fields. Do not copy the name of the field.

    1
2
3
4
5
6
    {
    "handson_webhook_url": "https://you.lt.superchat.com.br/api/v1/webhooks/cklv8qzo1000r0cs1q0klt1vb/tiledesk-ckm86efhr000i0aqyhrpuqj6v/handson/json",
    "channel_webhook_url": "https://you.lt.superchat.com.br/api/v1/webhooks/cklv8qzo1000r0cs1q0klt1vb/tiledesk-ckm86efhr000i0aqyhrpuqj6v/channel/json",
    "config": {
        "label": "Gupshup whatsapp with Tiledesk handson to human operator",
        "key": "tiledesk-ckm86efhr000i0aqyhrpuqj6v",

    Example

    In the case of our example the correct result would be this:

    Webhook for Key Value
    Tiledesk handson_webhook_url https://you.lt.superchat.com.br/api/v1/webhooks/cklv8qzo1000r0cs1q0klt1vb/tiledesk-ckm86efhr000i0aqyhrpuqj6v/handson/json
    Gupshup channel_webhook_url https://you.lt.superchat.com.br/api/v1/webhooks/cklv8qzo1000r0cs1q0klt1vb/tiledesk-ckm86efhr000i0aqyhrpuqj6v/channel/json

Create new config

With customized JSON for your Gupshup and Tiledesk accounts in hand use this API endpoint to create a configuration for this integration. This JSON will be the payload that you must place on the request body of the API call:

After the configuration data is created continue from now on.

Configure Gupshup

To configure Gupshup so that it sends messages received via Whatsapp to the Superchat webhook, follow the instructions in the coupling below:

After setting up Gupshup continue from now on.

Configure Tiledesk

And now, set up your account on Tiledesk so that responses from human operators are sent to the Superchat webhook:

After setting up Gupshup continue from now on.

Test the integration

ATTENTION: Read this if you have not yet registered your own phone number on Gupshup

If you are using Gupshup in SANDBOX mode, that is, you have not yet authorized the use of your phone number with Facebook/Whatsapp API, you will need to do the following:

  • Open https://www.gupshup.io/whatsapp/dashboard and choose the app to be configured. App home

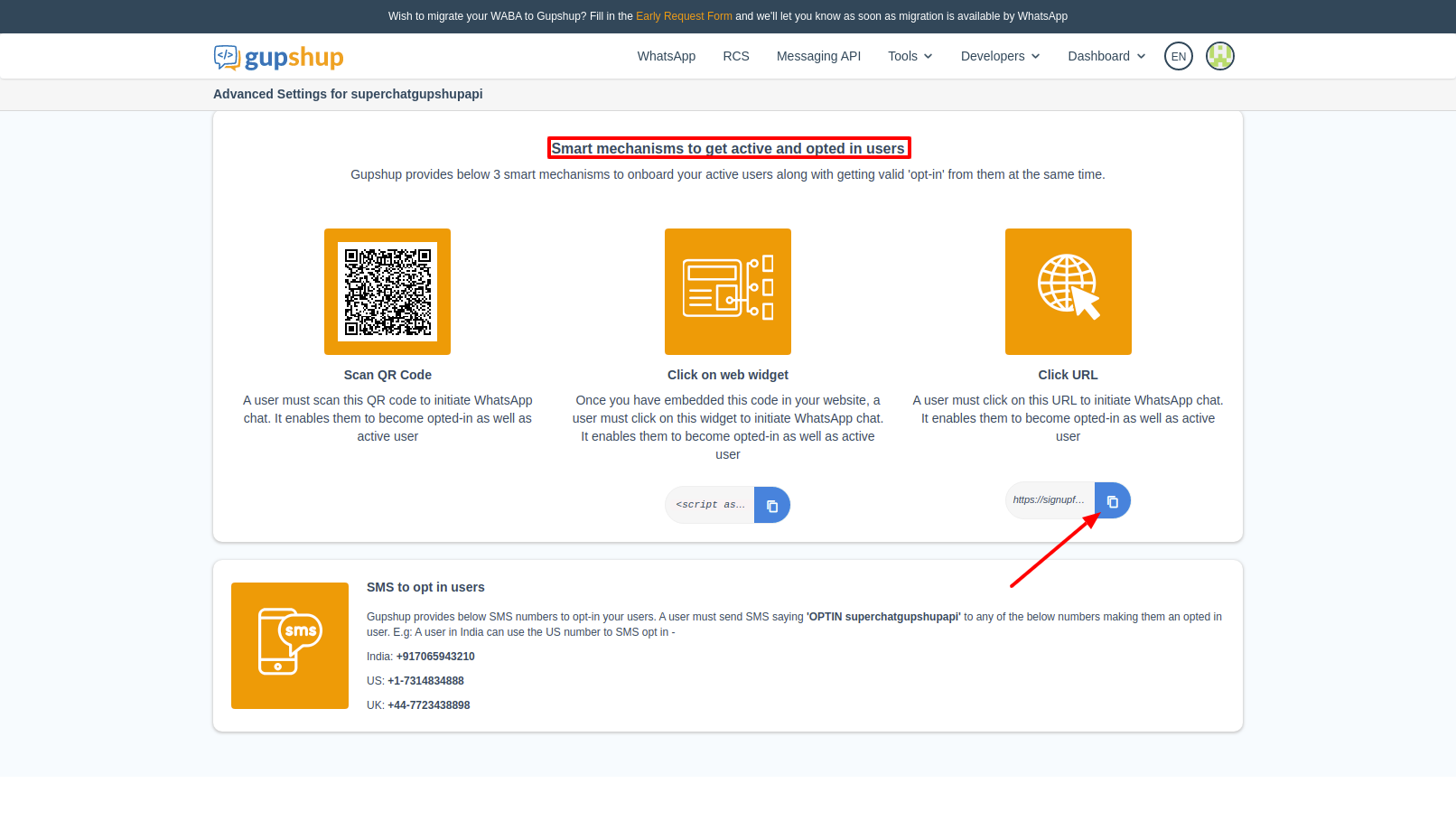

  • Scroll down until you find the section Smart mechanisms to get active and opted in users then copy the optin URL, open it on your smartphone and authorize your phone number to use the sandbox. App Whatsapp sandbox optin

  • Scroll down until you find the section Test access API and set callback URL then copy the phone number displayed in Sender field. This is the phone number associated with your testing environment and it is to it that you will send messages using Whatsapp. App Whatsapp number

The flow of the optin is like this:

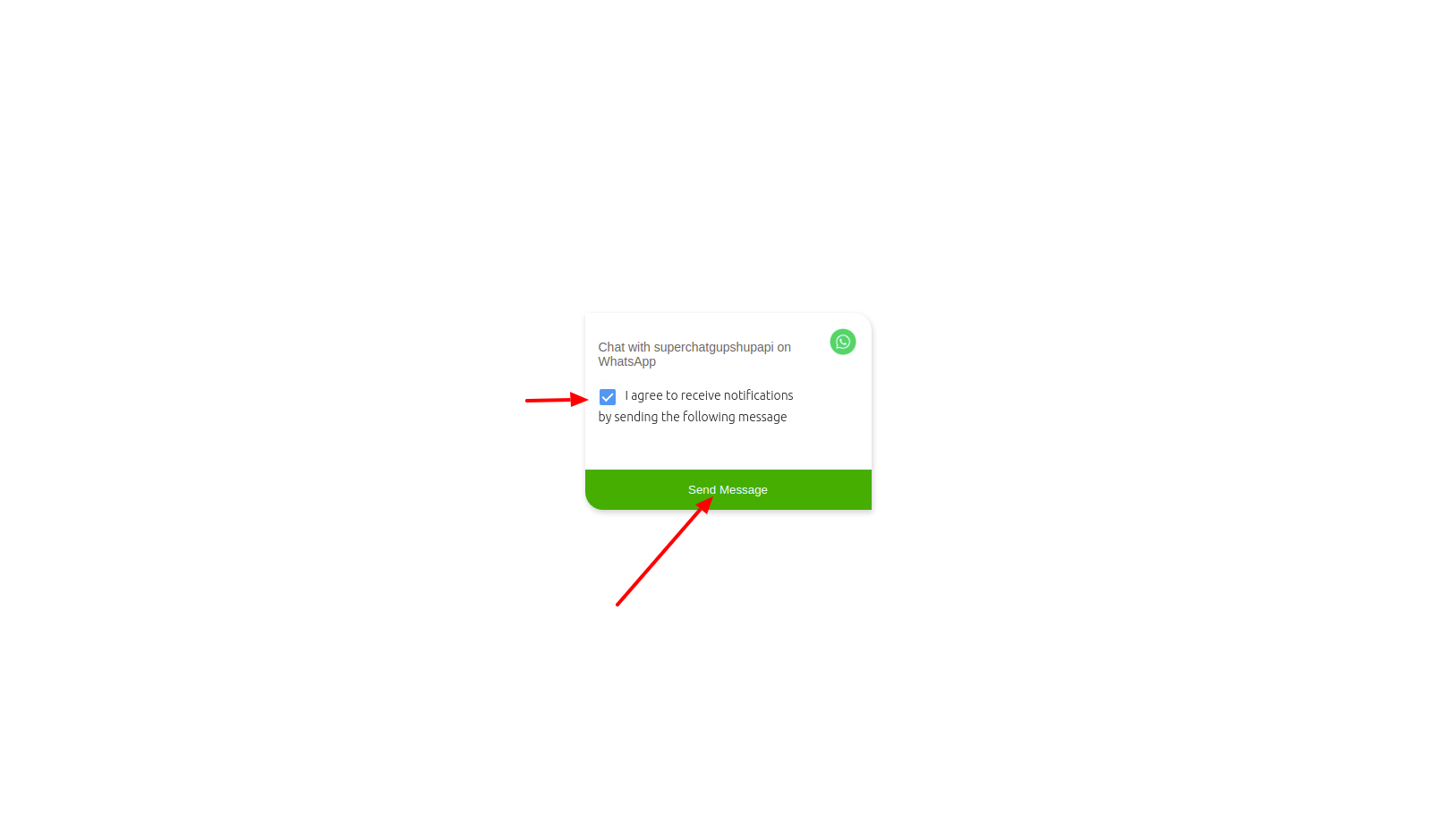

  • Click in the Gupshup optin Click in the Gupshup optin link

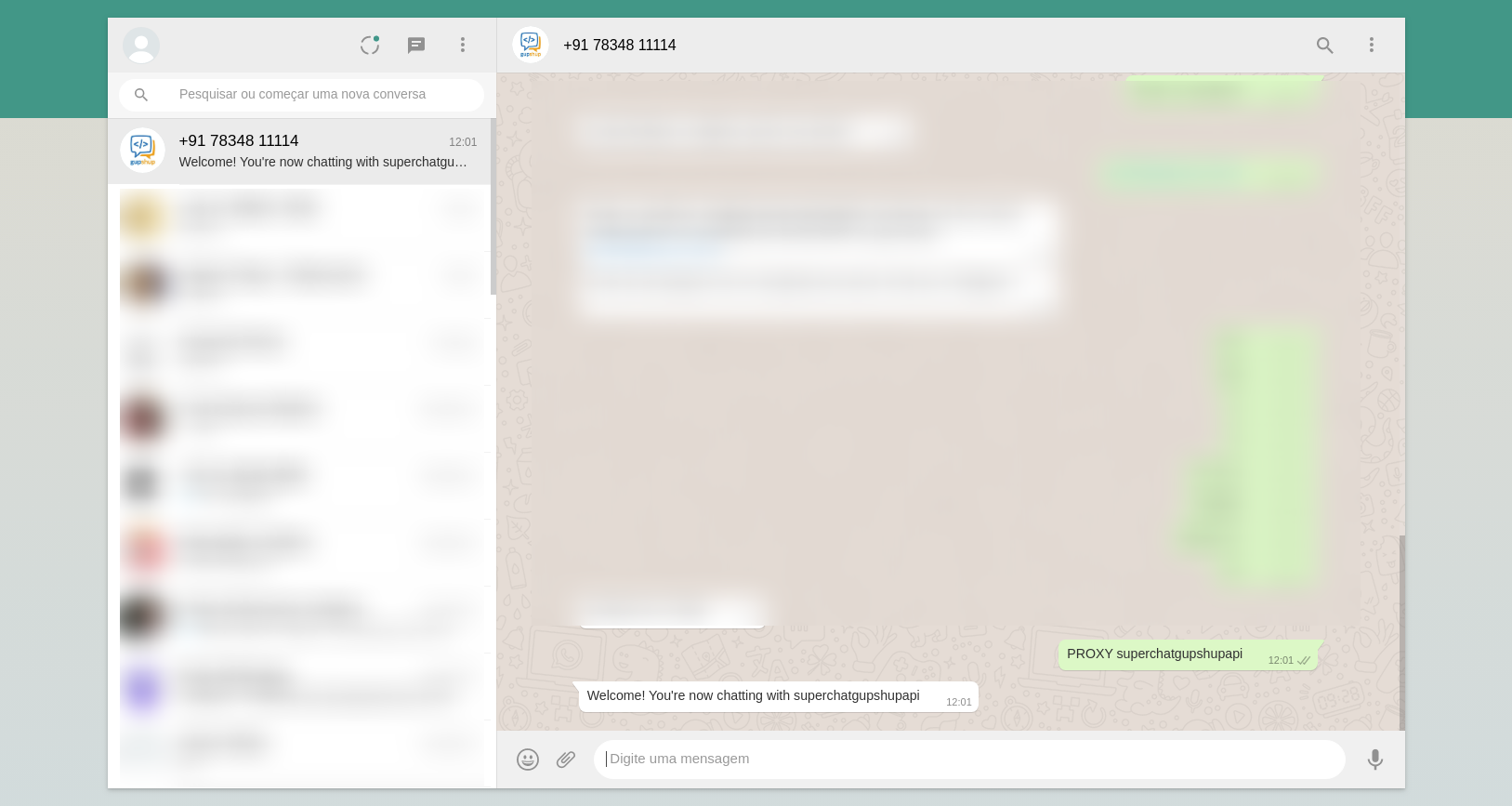

  • Send the optin message Send optin message using Whatsapp

Info

The optin must be done only once

To test your configuration send a text message to the phone number registered in Gupshup. Answer the initial questions - they are automatic, made by the active plugins in your Superchat configuration. After answering the last question, Superchat will create a new conversation on Tiledesk and you will be able to answer there.

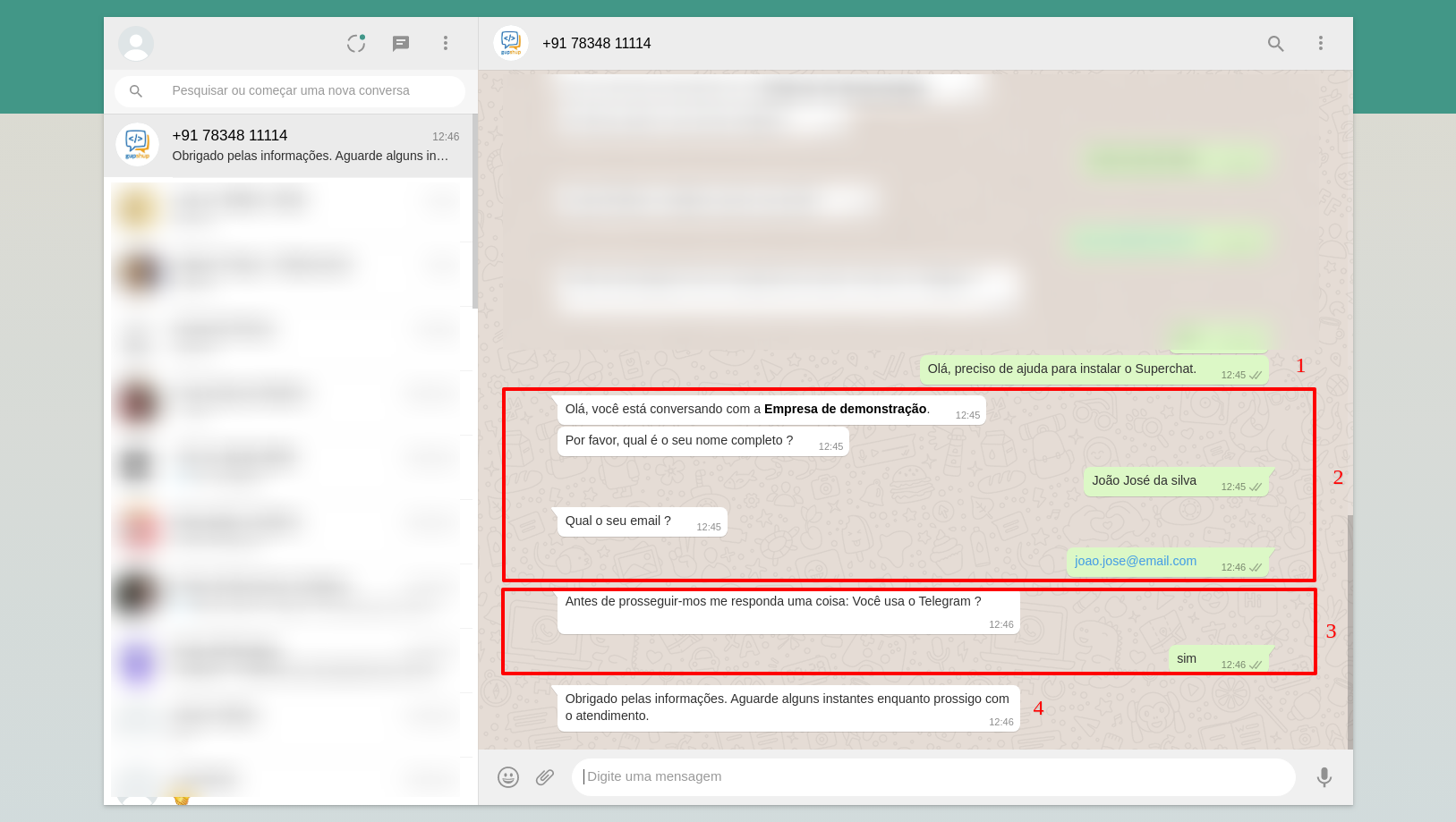

The first time someone starts a conversation with Superchat, the initial flow of it will be something like:

Send optin message using Whatsapp

Where:

  1. Message sent by the customer.
  2. Questions asked by the contact plugin if it is the first time the phone number has contacted you.
  3. Question asked by the telegram plugin.
  4. The conversation is transferred to a human attendant.

Note

The contact and telegram plugins were written in Python, but they could be a bridge to Rasa or Dialogflow, for example.

Superchat's architecture allows for various types of combinations. For example:

  • Use two Rasa servers trained for specific stages of a conversation, such as: Obtaining registration data and solving repetitive support problems.
  • Query external data from a database or via API.
  • Send authentication tokens via SMS, push, etc.

Now go to your Tiledesk account and answer the conversation:

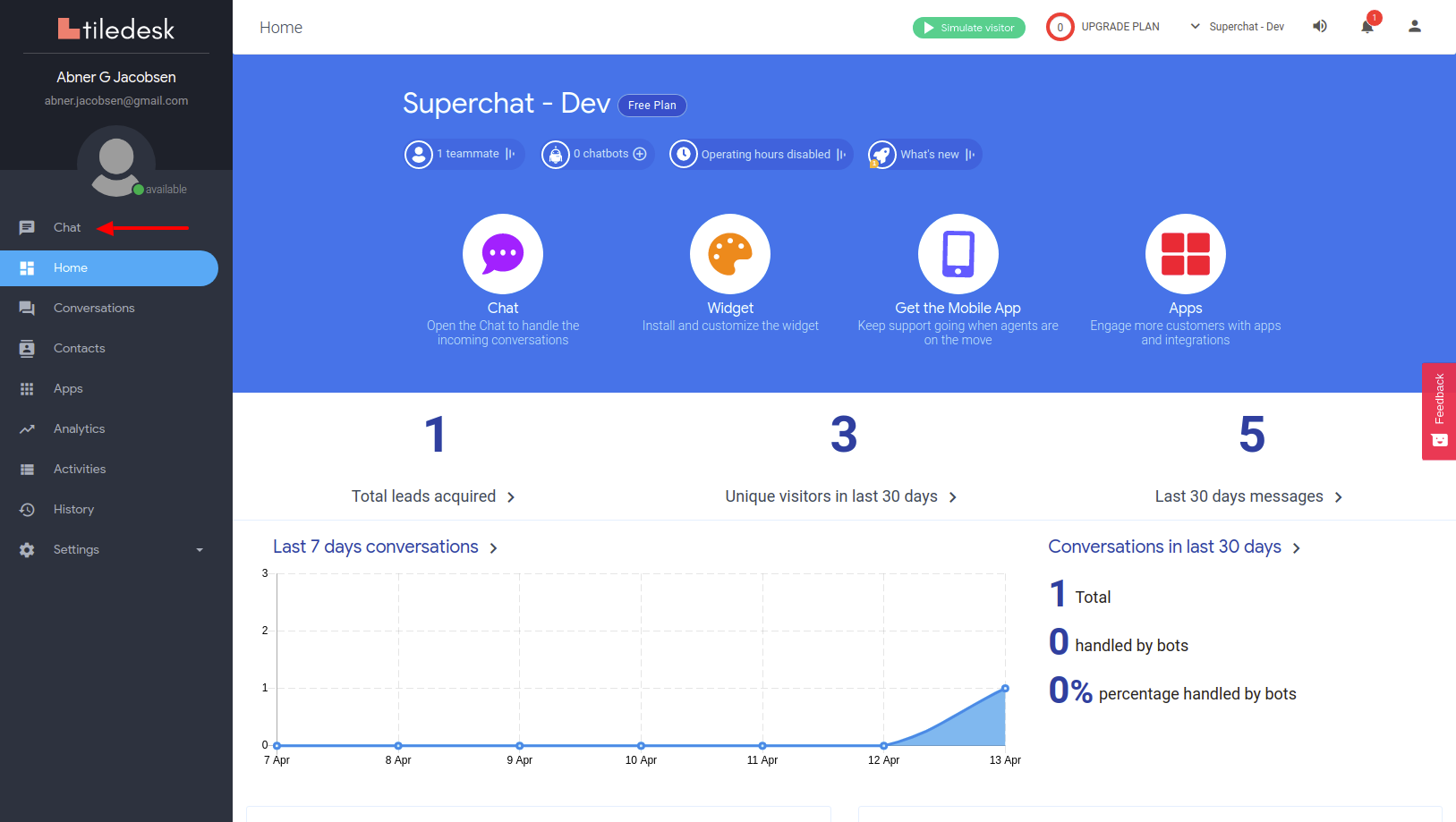

  • Open chat page Tiledesk view chats

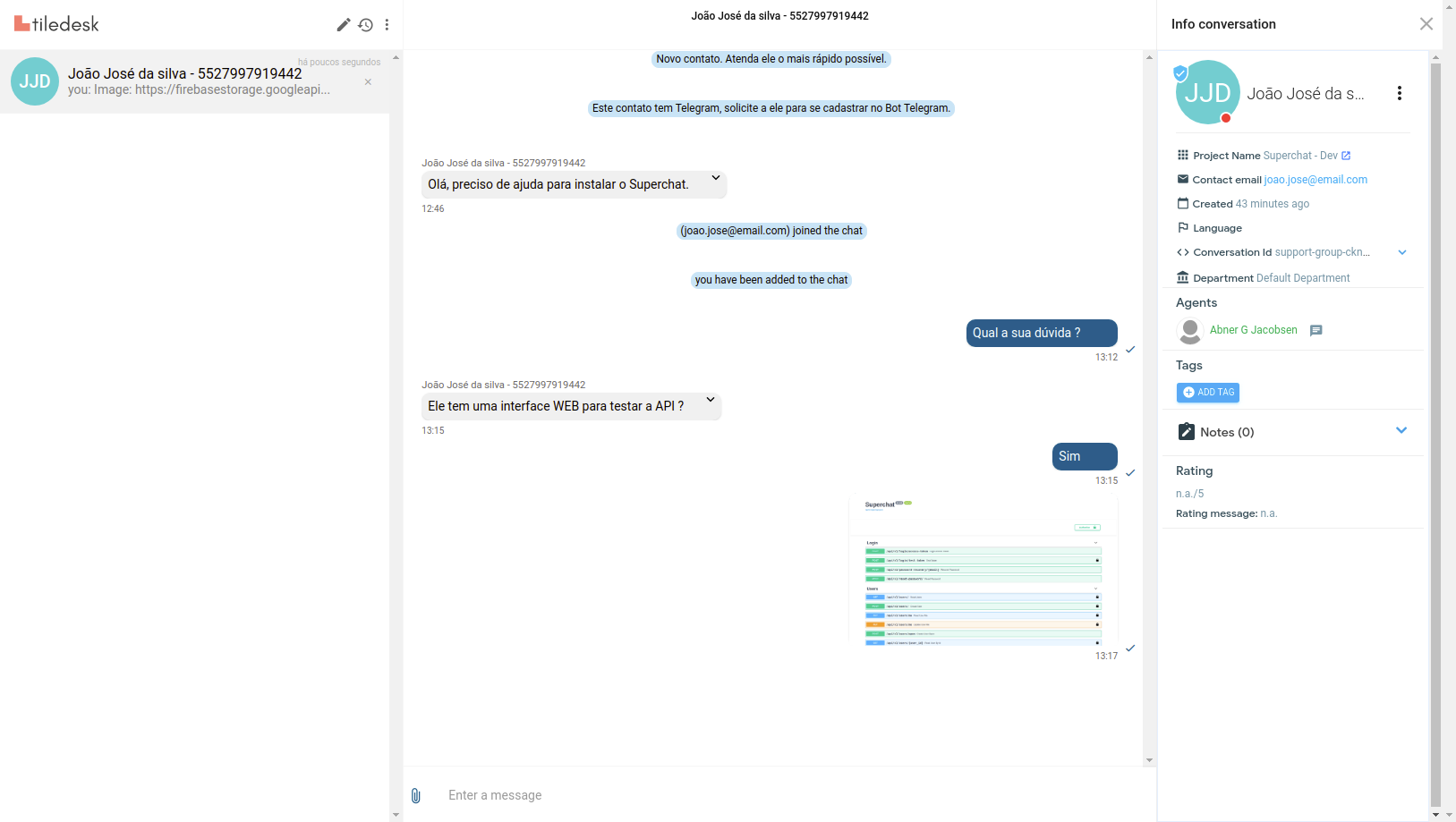

  • Chat messages Tiledesk chat

Media messages in sandbox mode

In sandbox mode Gupsup only allow media messages with approved ones
